Plumbing supply boxes, sometimes called plumbing outlet boxes, organize water, drain, or gas appliance connections while keeping shut-off valves and other components protected and accessible. They are commonly used for washing machines, ice makers, dishwashers, sinks, toilets, water heaters, and gas-powered appliances.
This guide explains how plumbing supply boxes work, the applications, materials and configurations available, and how to choose the right box for the job.
What is a Plumbing Supply Box?
A plumbing supply box, sometimes called a plumbing outlet box, is a recessed or surface-mounted enclosure that houses water or gas shut-off valves and, in some applications, drain connections. Supply boxes help protect these connections while keeping shut-off valves accessible for service or emergencies.

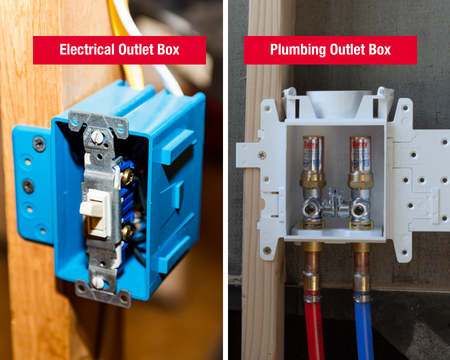

Plumbing supply boxes should not be confused with electrical outlet boxes. Plumbing supply boxes are designed for water, drain, or gas appliance connections, not electrical wiring.
Common Applications for Plumbing Supply Boxes

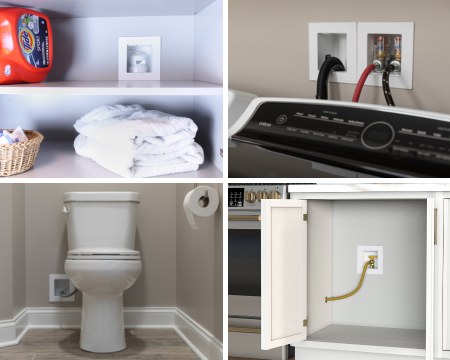

Supply boxes are commonly installed in:
- Laundry rooms: Washing machines
- Kitchens: Ice makers, dishwashers, and sinks
- Bathrooms and lavatories: Sinks and toilets
- Utility and mechanical spaces: Water heaters, secondary drains, and appliance shut-offs
- Gas appliance installations: Furnaces, ranges, dryers, and some water heaters
Recessed supply boxes are common because they help appliances sit closer to the wall while keeping connections protected and accessible. Surface-mount boxes remain useful for retrofits or wall cavities that cannot accommodate an in-wall box.
Benefits of Supply Boxes
Plumbing supply boxes provide a centralized, organized solution for managing:
- Water supply connections
- Drain connections, where applicable
- Gas appliance shut-off connections, where applicable
Other benefits include:
- Keeping shut-off valves and connections in a protected enclosure
- Maintaining access for service or emergency shut-off
- Creating cleaner, more organized installations
- Protecting components from accidental impact
- Simplifying appliance replacement, maintenance, and future upgrades
Learn more about everyday applications and homeowner advantages in Plumbing Supply Boxes: Homeowner Benefits and Options.

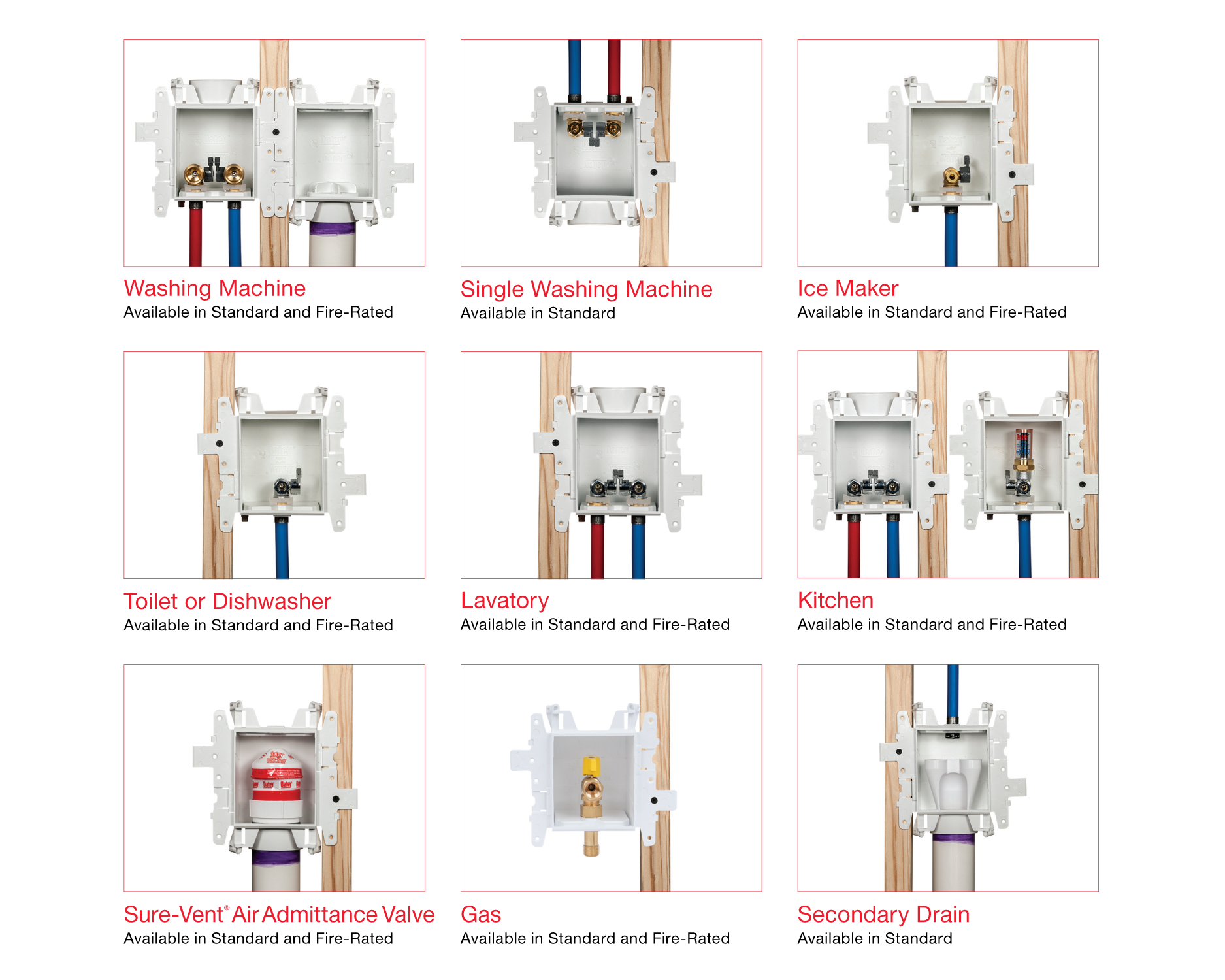

Types of Supply Boxes for Plumbing
Not all plumbing supply boxes serve the same purpose. Different appliances require different valve configurations, drainage options, and box sizes.
The table below summarizes the most common supply box types and their typical connections.
| Supply Box Type | Common Use | Typical Connection |
|---|---|---|
| Washing machine outlet box | Laundry rooms | Hot water, cold water, and drain |
| Ice maker supply box | Refrigerators with ice makers or water dispensers | Cold water |
| Dishwasher or utility supply box | Kitchens and utility areas | Hot or cold water |
| Toilet supply box | Bathrooms and commercial restrooms | Cold water |
| Lavatory supply box | Sinks and vanities | Hot and cold water |
| Secondary drain box | Laundry, mechanical, or utility spaces | Auxiliary or condensate drainage |
| Gas-powered appliance supply box | Gas ranges, dryers, furnaces, and select water heaters | Gas shut-off connection |

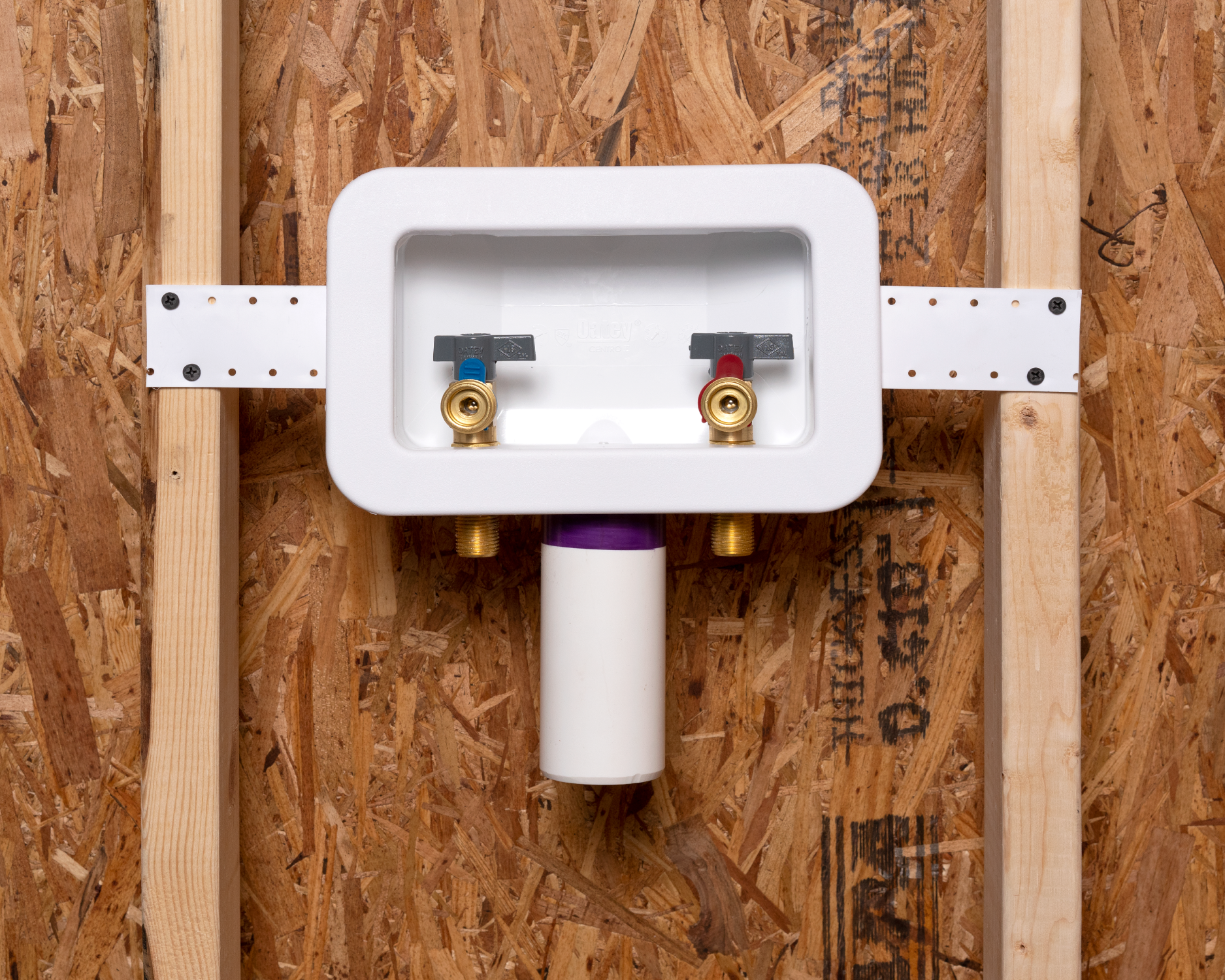

Washing Machine Outlet Boxes
Washing machine outlet boxes are among the most common types of plumbing supply boxes used in homes. They typically contain:
- Hot and cold water shut-off valves
- A built-in drain opening or receptor for the washing machine standpipe
By consolidating both supply and drainage into a single recessed location, these boxes help reduce clutter and protect pipes from accidental damage.
For appliance-specific selection guidance, read How to Choose a Washing Machine Outlet Box.

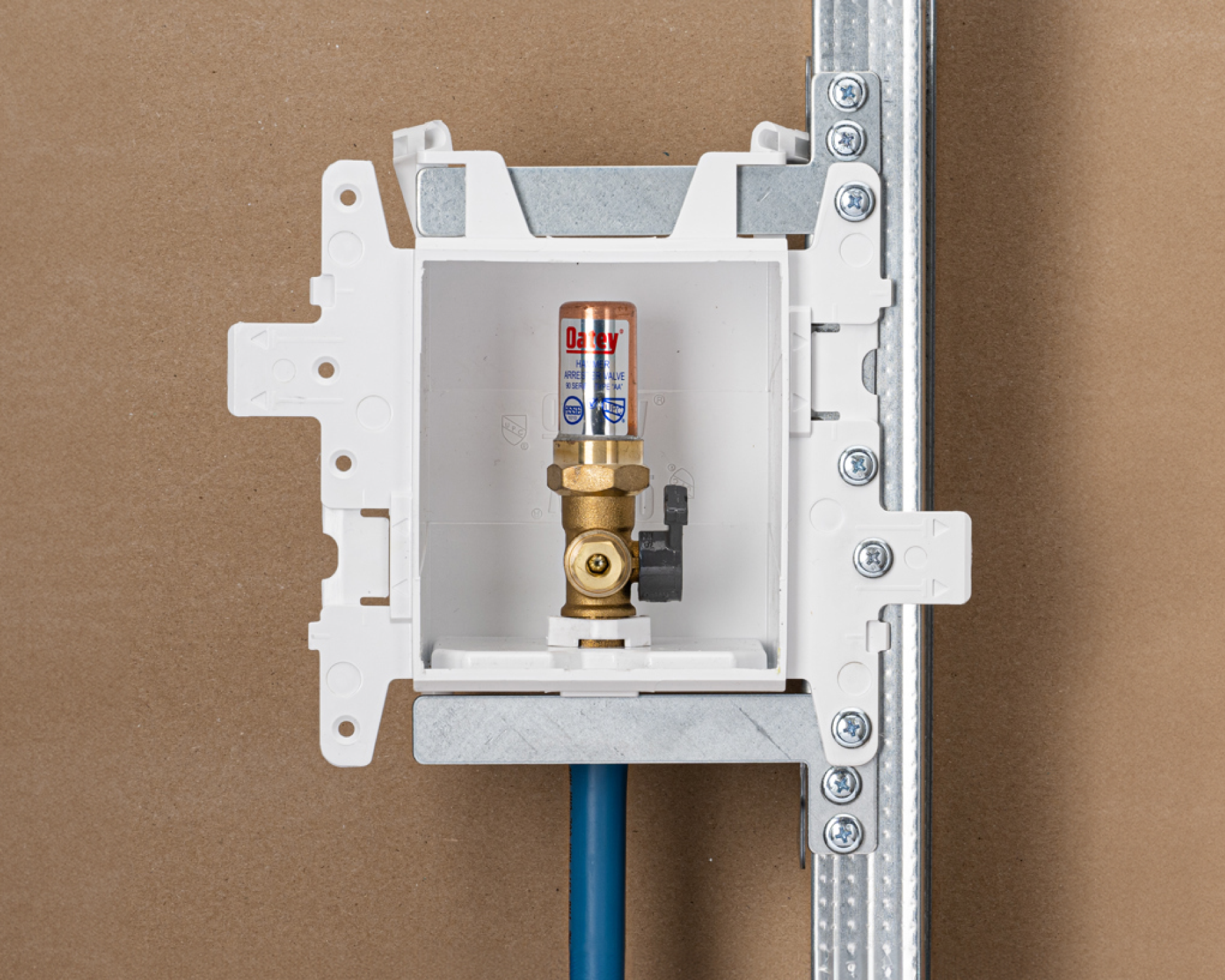

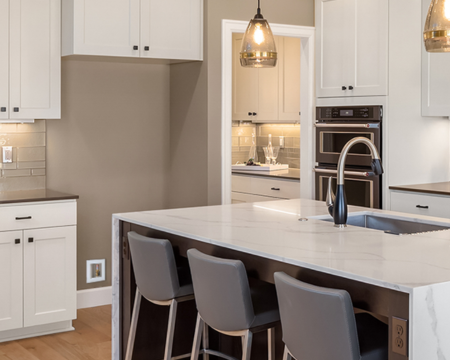

Ice Maker Supply Boxes
Ice maker supply boxes, sometimes called ice maker outlet boxes, provide a single cold-water connection for refrigerators with ice makers or water dispensers. By placing the valve behind or beside the refrigerator, the appliance can sit closer to the wall without exposed tubing.
Dishwasher and Utility Supply Boxes
Dishwasher and utility supply boxes typically provide a single hot-water or cold-water connection. They may be installed inside sink cabinets, in utility spaces, or recessed into walls. These boxes help streamline plumbing connections while keeping valves accessible for maintenance.
Toilet Supply Boxes
Toilet supply boxes provide a recessed, single-point water connection behind the toilet, helping conceal supply lines while keeping shut-off valves accessible for service or emergency use.
Lavatory Supply Boxes
Lavatory supply boxes house recessed hot and cold water connections for sinks and vanities. They create a cleaner appearance while keeping shut-off valves accessible for maintenance. They are commonly used in both residential bathrooms and high-traffic commercial restrooms where durability and accessibility are essential.

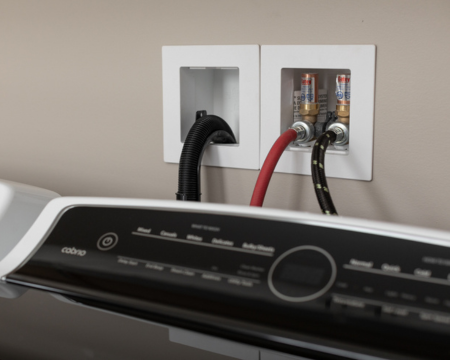

Secondary Drain Boxes
Secondary drain boxes provide a recessed drainage connection for appliances or fixtures that require overflow protection or auxiliary drainage. Commonly used in laundry rooms, mechanical spaces, and utility areas, they help manage condensate and auxiliary drainage and reduce the risk of water damage while keeping drain connections organized and accessible.

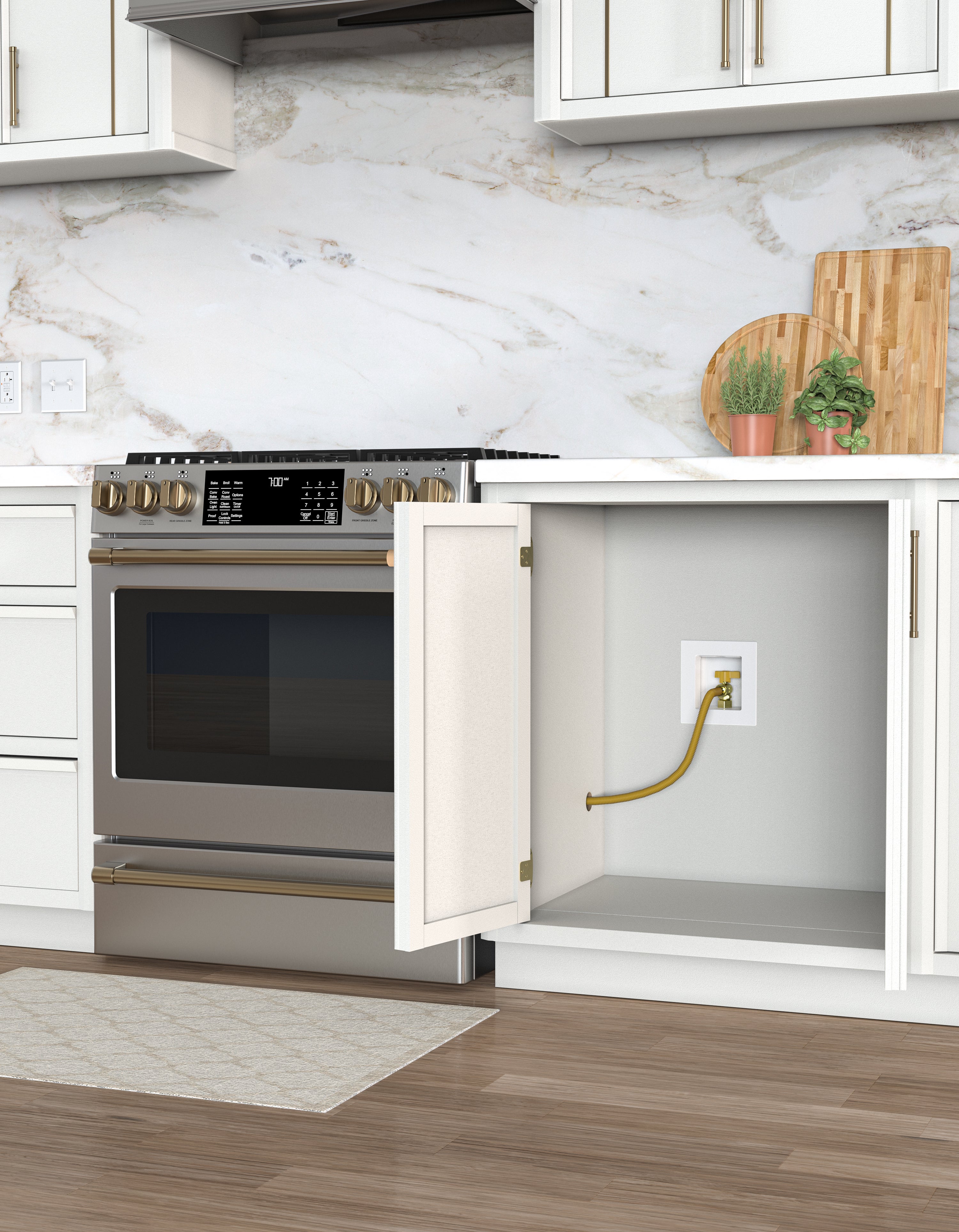

Gas-Powered Appliance Supply Boxes
Gas-powered appliance supply boxes provide a recessed connection point for water heaters, furnaces, ranges, and dryers. They help conceal supply lines while keeping shut-off valves accessible for maintenance, repair, or replacement. Gas connections should always be installed and tested according to applicable local requirements.
Recessed vs. Surface-Mount Boxes
The best mounting style depends on wall depth, installation stage and whether the project involves new construction or a retrofit.
- Recessed supply boxes sit inside the wall cavity for a cleaner, finished appearance.
- Surface-mount boxes are useful where wall depth or retrofit conditions make in-wall installation impractical.
Materials and Configurations
Plumbing supply boxes are available in multiple materials and configurations to suit different environments and code requirements.
Plastic vs. Metal Supply Boxes
Supply boxes are available in plastic, composite, and metal materials. The box material can affect characteristics such as weight, corrosion resistance, durability, and installation preferences, but it does not determine whether a supply box is fire-rated.
- Plastic and composite supply boxes: Options made from PVC, ABS, high-density polyethylene (HDPE), or bulk molding compound (BMC) are lightweight, corrosion-resistant, and commonly used in residential and commercial installations.
- Metal supply boxes: Metal boxes are rigid and durable and may be selected based on the installation environment, project specifications, or installer preference.
Neither plastic nor metal is inherently fire-rated. The intumescent pad, not the box material, provides the fire-rated protection.
Valve Types and Connection Options
Supply boxes may include:
- Quarter-turn or multi-turn shut-off valves
- Connection options for copper, PEX, CPVC, or push-connect systems
- Integrated water hammer arrestors, when required by local code or specified for the application
- Gas shut-off valves for gas appliance supply boxes, where applicable
Single Valve vs. Dual Valve Configurations
- Single-valve boxes are typically used for appliances that require only hot or cold water connections, such as ice makers.
- Dual-valve boxes are typically used for appliances needing both hot and cold water, like washing machines.
How to Choose the Right Supply Box
Selecting the right plumbing supply box depends on a number of factors including:
- Appliance or fixture type
- Required water, drain, or gas connections
- Number and style of shut-off valves
- Wall depth, framing, and mounting location
- Local code, fuel-gas, and fire-rating requirements
Determine the Application
Start by identifying the appliance or fixture the box will serve and the connection it requires: hot water, cold water, both hot and cold water, drainage, gas, or a combination.
Evaluate Space and Wall Depth
Consider stud spacing, wall cavity depth, and whether the box needs to be recessed or surface-mounted. Tight framing or shallow walls may require compact box designs.
Consider Accessibility and Code Requirements
Shut-off valves should remain accessible for service and emergency shut-off, and local codes may require specific access clearances. Multifamily or commercial installations may also require listed fire-rated supply boxes, depending on the wall assembly and project requirements. Gas connections may be subject to separate fuel-gas code requirements.

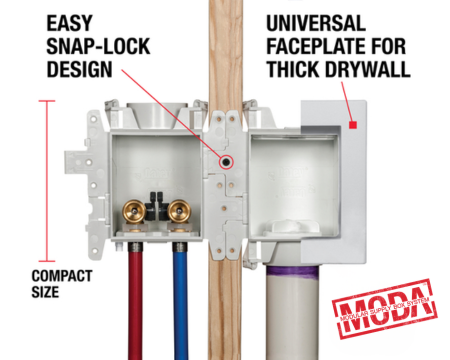

Modular and Multi-Application Systems
Modular supply box systems allow valve, drain, and accessory boxes to be combined for projects involving multiple connections or challenging framing. They can improve layout consistency and simplify rough-in work in multifamily construction, remodels, and utility-heavy spaces.
Oatey's MODA™ Supply Box System is a modular platform designed to support flexible configurations across different applications. For a full overview of our MODA modular supply box system, click here.
Are Metal Supply Boxes Automatically Fire-Rated?
No. Metal construction alone does not make a supply box fire-rated. The intumescent pad provides the fire-rated protection. Testing and third-party certification verify that the complete product is approved for use in the applicable fire-rated wall assembly.
When a fire-rated supply box is required, select a tested and listed product and install it according to the manufacturer’s instructions.
For a detailed explanation, read Are Metal Supply Boxes Fire-Rated? What Plumbing Pros Need to Know.
Installation Overview
While installation details vary by product and application, most supply box projects follow the same general sequence:
- Confirm the box location, height, and framing conditions.
- Mount and secure the supply box.
- Connect the required valves and water, drain, or gas lines.
- Test the connections and confirm shut-off access.
- Finish the wall and install the faceplate or trim cover.
However, always refer to manufacturer instructions or local code requirements.
For step-by-step instructions, see: How to Install a Supply Box.
Oatey Supply Box Solutions
Oatey offers supply box solutions for residential, multifamily, and light-commercial applications. Product families include MODA® modular systems, Quadtro® washing machine boxes, compact Centro II® boxes, I2K® ice maker boxes, and traditional metal and plastic options.
Each system is designed to support clean installations, accessible shut-off valves, and compatibility with common plumbing materials. Explore the complete Oatey Supply Boxes category.
Published on September 11, 2026
Frequently Asked Questions
-
What is a plumbing supply box?
-
A plumbing supply box is a recessed or surface-mounted enclosure that houses water or gas shut-off valves and, in some applications, drain connections. It keeps these connections protected and accessible for service or emergency shut-off.
-
-
Are supply boxes and outlet boxes the same thing?
-
In plumbing, the terms “supply box,” “outlet box,” and “plumbing outlet box” are often used interchangeably. They are different from electrical outlet boxes, which are designed for wiring.
-
-
What types of supply boxes are available?
-
Common types include washing machine boxes, ice maker boxes, dishwasher and utility boxes, toilet and lavatory boxes, secondary drain boxes, gas-powered appliance boxes, and recessed or surface-mount designs.
-
-
Are metal supply boxes fire-rated?
-
Not automatically. Metal construction alone does not make a box fire-rated. The intumescent pad—not the box material—provides the fire-rated protection. The complete supply box must also be tested and listed for use in the applicable fire-rated wall assembly.
-
-
How do I choose the right plumbing outlet box?
-
Choose a plumbing supply box based on the appliance or fixture, required water, drain, or gas connections, valve configuration, wall depth, mounting location, and applicable code or fire-rating requirements.
-
-
Can plumbing supply boxes be used for ice makers or dishwashers?
-
Yes. Dedicated plumbing supply boxes are available for ice makers, dishwashers, sinks, toilets, and other appliance or fixture connections that require accessible shut-off valves.
-
