Understanding pipe fittings is crucial for designing, installing, and maintaining plumbing systems. These components connect, control, or redirect the flow of water, gas, or waste. Identifying the right fitting for the job can be challenging with so many options available. Selecting a wax ring of the appropriate size is crucial for proper installation. Ensure the bathroom floor is finished before installing the flange. Properly bolting the toilet to a stable and level base is essential. Working with a cast iron flange that interfaces with lead pipes can be challenging.
Caulking around the base of a toilet provides stability and cleanliness. Install the toilet flange on top of the existing floor. Measure the flange height in relation to the floor level.
Adjust the height of a toilet flange to the lowest ring if necessary. Use multiple wax rings to adjust the height of a toilet flange. Remove the old flange before installing a new one. Adjust the toilet flange to the proper height. A good seal is important to prevent leaks. Properly secure the toilet base during installation.
Ensure the toilet rests firmly on the floor. Correctly set the toilet flange height when replacing or resetting toilets. Maintain the proper relationship between the toilet flange and the wall. Install a wax ring correctly by placing the toilet evenly over the flange.
Different Types of Pipe Fittings and Their Uses
1. Tee, Wye, and Cross Fittings
- Tee Fittings: T-shaped fittings combine or split the flow of three pipes carrying water or gas. They are common in water systems and are a key type of fitting in supply lines. Tee fittings are commonly referred to as T-shaped fittings in the industry.
- Wye Fittings: Merge flows at an angle, typically in drainage or waste systems, to maintain directional flow.
- Cross Fittings: Connect pipes from four directions, allowing water or gas to branch out in multiple directions.
2. Elbow Fittings
Elbow fittings change the pipe's direction. Available in angles like 90°, 45°, and 22.5°, they can make sharp or gradual turns in any piping system. They are commonly used in water supply lines and drainage systems with materials like copper pipe fittings. Elbow fittings are essential in manufacturing processes for creating efficient piping systems.

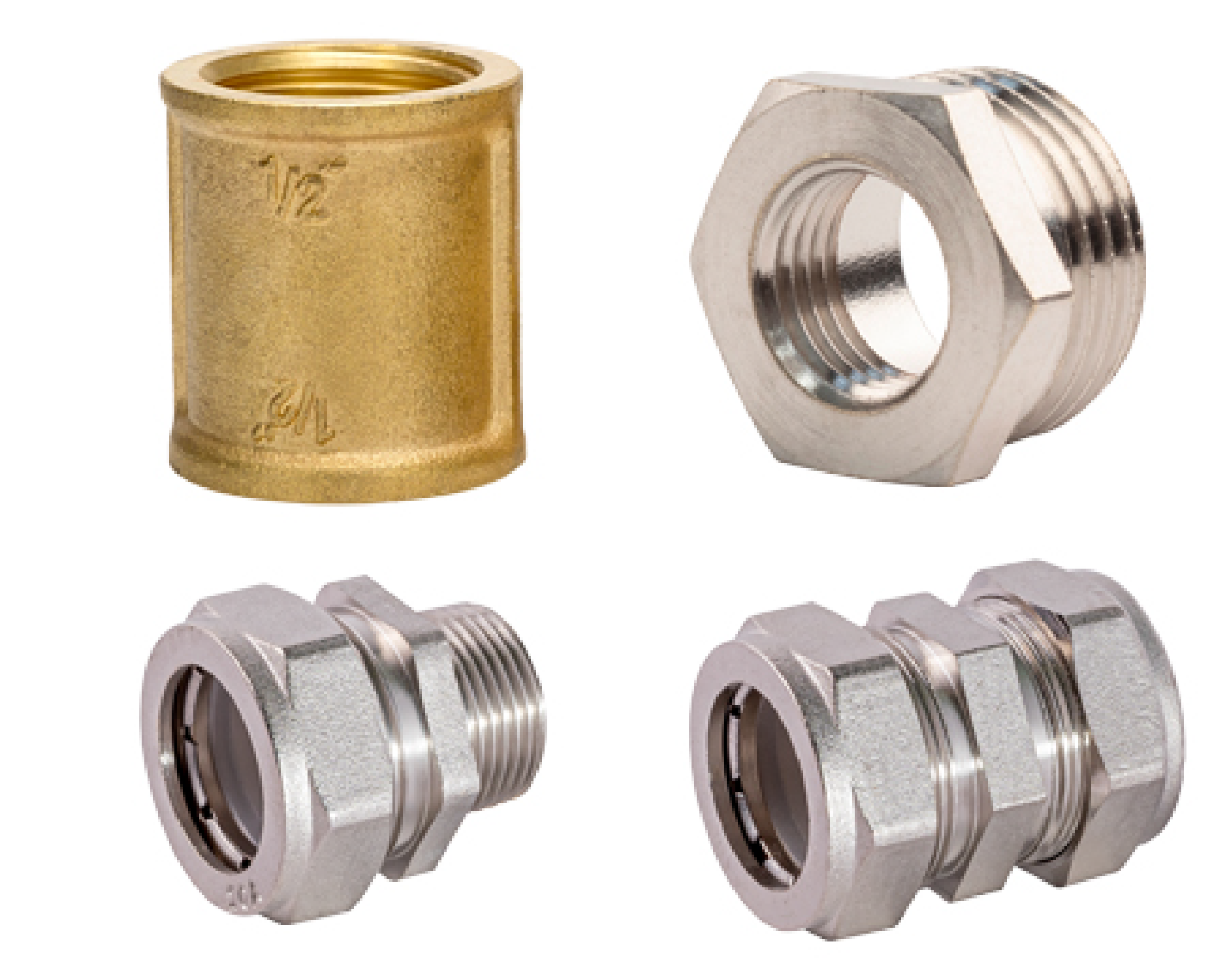

3. Coupling, Bushing, Adapter, and Union Fittings
- Couplings: Join two pipes of the same diameter. They are available in standard or reducing types to adjust pipe sizes.
- Bushings: Reduce the size of a pipe by connecting different diameters.
- Adapters: Convert between different connection types, commonly used to transition between materials.
- Unions: Similar to couplings, these fittings allow for easy disconnection, making them ideal for areas where maintenance might be needed. Bolts are often used to secure these fittings in place, ensuring a tight connection.

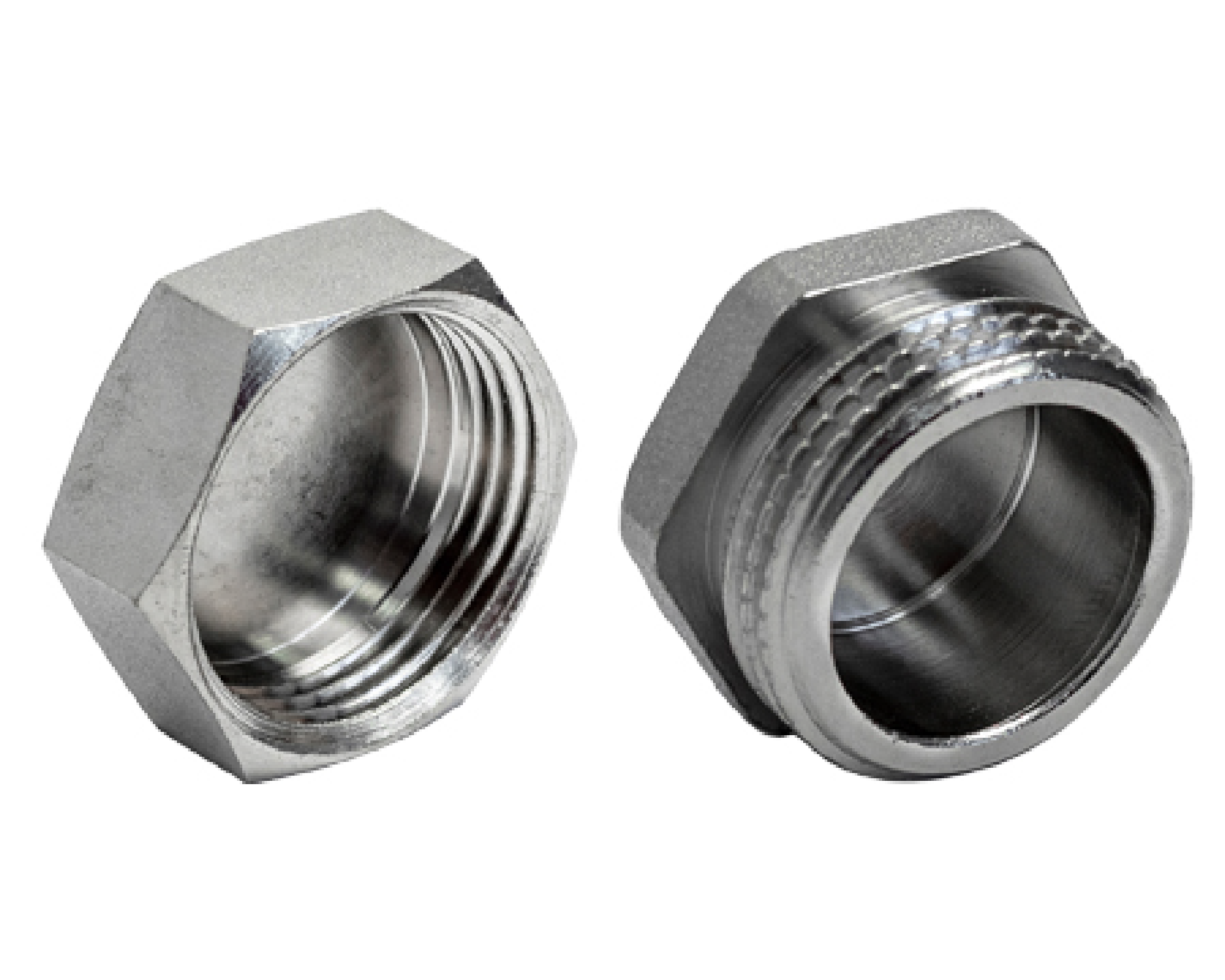

4. Cap and Plug Fittings
- Caps: Seal the end of a pipe by fitting over it, creating a tight seal.
- Plugs: Insert into a fitting to stop the flow; often used in PVC pipe fittings. Caps also protect the ends of pipes from becoming damaged during installation or maintenance.
5. Flange Fittings
Flange fittings are flat, round connectors that secure pipes to walls or other fixtures. One common application is the toilet flange, which connects toilets to drainpipes. Installing flange fittings often requires specific tools to ensure a secure and leak-proof connection.
6. Trap Fittings
U-shaped traps, such as the P-trap under a sink, prevent sewer gases from entering your home and help catch debris that could otherwise clog the drainage system. These are often made with PVC pipe fittings for durability.
Additional Pipe Fittings to Consider
- Nipple Fittings: Short sections of pipe with male threads on both ends, used to connect two female-threaded fittings or pipes. These are commonly used in water heaters and radiators.
- Trap Primers: Devices that maintain water seals in traps, preventing sewer gases from entering buildings. They are essential in commercial plumbing systems.
- Clean-Outs: These fittings provide access to drain lines for cleaning and removing blockages, making maintenance easier and preventing major clogs.
- Compression Fittings: Fittings that use a tool-free assembly process by tightening a nut to compress a ring or ferrule around the pipe, creating a secure, leak-proof seal. They are widely used in modern plumbing for quick repairs or installations, such as with PEX or copper piping. These fittings are commonly used with tubing to create secure connections in plumbing systems.
- Bite-Type and Flare Fittings: Fittings designed for high-pressure applications, where bite-type uses a ferrule to grip the pipe and flare fittings require the pipe end to be flared outward for a tight seal. They are critical in industrial and HVAC systems handling gases or refrigerants.
- Reducers: Fittings that connect pipes of different diameters, with concentric reducers maintaining a centered alignment and eccentric reducers offsetting the flow to prevent air traps. They are vital for smooth size transitions in drainage or industrial pipelines.
How to Choose the Right Pipe Fittings for Plumbing
When selecting pipe fittings for your next project, consider these factors:
- Application: What is the purpose of the fitting? Select fittings based on whether they manage directional flow, maintenance, or sealing in your piping system.
- Pipe material: Match the fitting material to the pipe type—for instance, PVC pipe fittings for PVC pipes and copper pipe fittings for copper pipes. Learn more about solvent welding for different plastics here.
- Local codes: Certain materials or pipe-fitting types may be restricted based on local plumbing codes. Always check requirements before buying.
- Ease of Installation: Push-to-connect or compression fittings can simplify installation for beginners. Soldering copper pipes in confined spaces can be difficult and pose a fire hazard, making compression fittings a practical alternative. You can also refer to our guide on soldering copper pipes here.
Common Materials Used for Pipe Fittings
Types of pipe fittings for PVC and other materials:
- PVC and CPVC: Lightweight and corrosion-resistant, these materials are popular in residential plumbing. They’re easy to connect using solvent cement. (Find our guide on selecting solvent cement here.)
- Copper: This material is common for water supply lines due to its durability and heat tolerance. Soldering is the standard connection method for copper. Copper pipe fittings are often soldered for a tight seal.
- PEX (crosslinked polyethylene): Flexible, durable, and easy to install, PEX pipe is widely used in modern plumbing systems with PEX pipe fittings. It is especially valued for resisting freeze damage and for working well with push-to-connect fittings.
- Black steel and galvanized steel: Typically used in gas lines and in older plumbing systems. Galvanized steel is immediately ready to use when delivered, highlighting its convenience.
- Brass: Corrosion-resistant and suitable for potable water applications, often seen in brass copper fittings.
Each material has its strengths, but selecting the right one depends on plumbing applications and environmental conditions.
Threaded vs. Welded Pipe Fittings: Pros and Cons
Choosing between threaded and welded pipe fittings depends on the application and long-term maintenance needs. Additional information about the pros and cons of these fittings can help in making an informed decision.
Threaded Pipe Connection Types
- Pros:
- Easier to install and remove.
- Ideal for systems requiring frequent disassembly; e.g., gas lines.
- Cons:
Solvent-Welded Pipe Connections
- Pros:
- Creates a leak-proof bond by chemically fusing pipes and fittings, making it suitable for high-pressure applications.
- Stronger than threaded connections, especially for plastic pipes and PVC pipe fittings.
- Cons:
For tips on avoiding solvent-welding mistakes, check out this helpful blog.
Best Pipe Fittings for Home Plumbing Installations
Recommended plumbing fittings:
- Push-to-connect fittings: Tool-free and fast.
- PEX crimp and expansion fittings: Durable and widely used.
- PVC solvent-weld fittings: Ideal for drainage.
- Copper press and soldered fittings: Reliable for water supply.
Oatey Tip: For high-pressure systems or hot water, use CPVC or copper for dependable performance.
Pipe fittings ensure smooth plumbing operations. Choosing the right types, materials, and installation method is key to a successful DIY or professional job. For more information on selecting the best fittings for your specific needs, contact our customer support.
Installation Tips for Common Pipe Fittings
- Use Teflon Tape Correctly: Wrap clockwise around male threads.
- Avoid Overtightening: Prevent cracks or thread stripping. Overtightening can cause fittings to become damaged, leading to leaks and other issues.
- Soldering Tips: Clean surfaces, apply flux evenly, and heat fitting uniformly.
Comparison of Pipe Materials for Different Applications
| Material | Pros | Cons | Best Use Cases |
|---|---|---|---|
| PVC & CPVC | Lightweight, corrosion-resistant | PVC unsuitable for hot water | Drainage, irrigation, hot/cold water supply |
| Copper | Durable, heat-resistant | Requires soldering, costlier | Water supply, HVAC systems |
| PEX | Flexible, freeze-resistant | Not UV-resistant, needs special fittings | Residential plumbing, radiant heating |
| Galvanized Steel | Strong, corrosion-resistant | Heavy, rusts over time | Older plumbing, outdoor applications |
| Brass | Corrosion-resistant, potable water safe | Expensive | Water and gas supply lines |
Each material used for pipe fittings has its own strengths and weaknesses. And knowing which material to use ensures long-lasting and safe installations. The manufacturing process for galvanized steel involves coatin
Need more help selecting or installing pipe fittings? Explore detailed how-tos, like proper soldering techniques, here.
